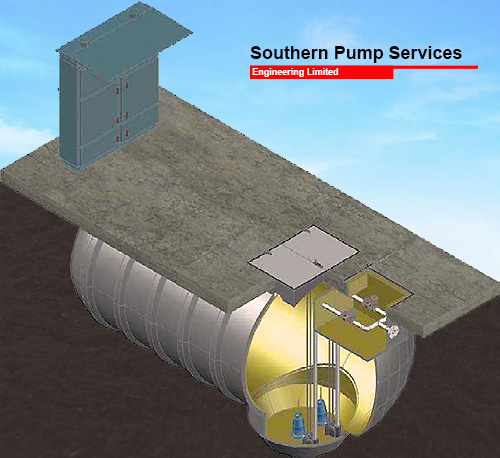

Horizontal Sewage Pumping Station

GRP self contained H1 2.39 Building regs horizontal storage pump station for mechanical building services collection and pumping of, surface water, wastewaterand light sewage from developments where drainage by gravity is not possible.

Type key Example:
SPSE Southern Pump Services Engineering
H1HS H1 Horizontal Storage
1000 Pump Station chamber length
1000 = 10,000mm
1400= 14,000mm
80 Pump Station pipework size
80 = 80mm
100 = 100mm
3 Electrical Supply
1~ 220v
3~ 400V
Quick Specs:
Specifications
Diameter: 2500

Applications requiring a large staorage capacity for stored sewage water will require a horizontal pumping station.

When a large foul water storage tank is required, digging down becomes expensive and invonvenient, that's why we recomend customers needing tanks with a capacity of over 20,000 ltrs use our range of horizontal sewage pumping stations.

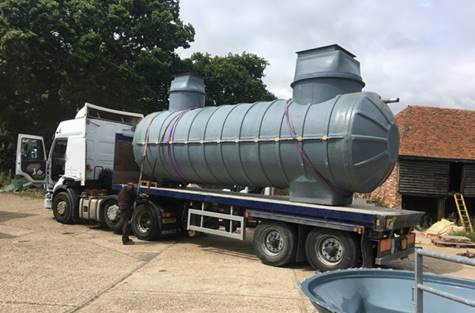

Sitting around 4 meters deep, these GRP tanks are extremelly durable, robust, cost-effective and can be custom-made to your storage specifications.

All steel pipework, pumps, valves, pedestals and other pumping station components are installed and tested before being delivered to site, meaning there's little work to be done on the day.

Horizontal Sewage Pumping Stations are Perfect for:
  • Schools
  • Housing Developments
  • Shopping Centers
  • Basement Floors
  • Underground Car Parks
  • Domestic & Commercial Properties
  • Liftshaft
  • Rooms and surfaces under backflow level
  • Hospitals Residential Sub Divisions
  • Caravan Parks
  • Service Stations


We regualry provide horizontal tanks for applications other than sewage pumping stations.

For example, stormwater buffer storage, grey water storage or sprinkler fire fighting storage all require large volumes of stored water which our horizontal storage tanks are perfect for.

Municipal, industrial and domestic surface water, wastewater and sewage disposal. Suitable for use as a fully assembled below ground packaged pump station 1000mm dia. in pressure drainage applications and as a collective GRP horizontal storage pump station.


GRP Self Contained Pump Station to comply with H1 2.39 Building Regs Design:

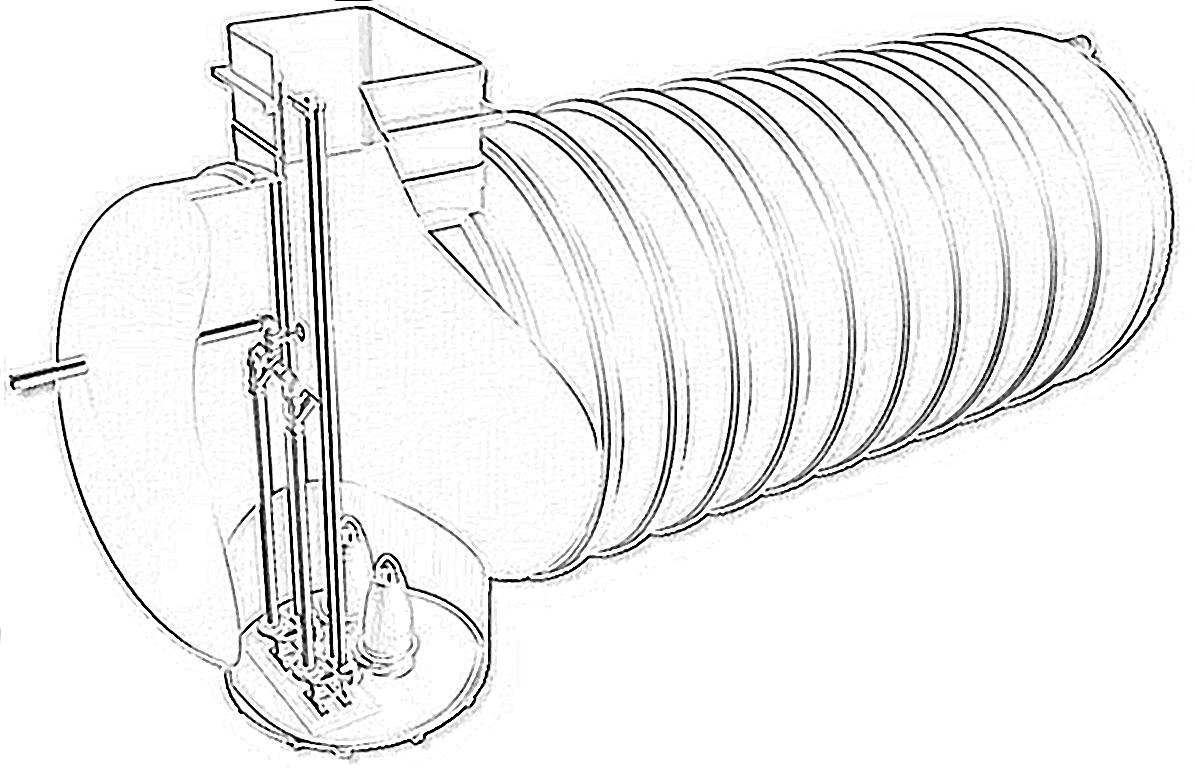

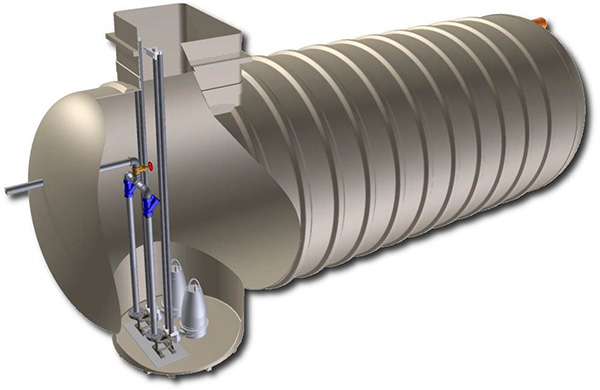

The SPSE GRP self contained H1 2.39 Building regs horizontal storage pump station is available in two models are available and these incorporate all pipework connections, rails, chains, floats as well as pumps and control equipment. A simple pump auto-coupling device enables quick and easy removal of the pump for servicing or cleaning.


Various types of pumps in single or dual pump options can be supplied to best suit the application:

Single Pump upto 100mm
Variable sump depths (recommend a further meter below invert pipe), inlet and discharge connection are freely selectable with a single free standing or pedestal mounted submersible pump.

Dual Pump upto 150mm
Variable sump depths (recommend a further meter below invert pipe), inlet and discharge connections are freely selectable with two free standing or pedestal mounted submersible pumps.

Scope of delivery

  • High-level alarm as standard (optional as marked *)
  • Various invert depths
  • 110mm or 160mm OSMA inlet connection
  • Stainless steel chain including fixing hook
  • Single chamber with Check valve, gate valve, fully packaged unit completely assembled
  • Wide range of pump options including macerators
  • Pumping distances up to 1000meters
  • Pedestrian or optional vehicle manhole cover
  • Standby pump (on Dual System)

With the ever increasing cost of civil work and site labour, the proposal of having a GRP self contained H1 2.39 Building regs horizontal storage pump station delivered to site as a complete package is an attractive alternative to the conventional method of a concrete well and separate pump system.

A comprehensive range of sizes and depths are available and these incorporate all pipework connections, rails, chains, floats as well as pumps and control panel equipment. A simple pump pedestal device enables quick and easy removal of the pump for servicing or cleaning.


Various types of pumps in single or dual pump options can be supplied to best suit the application:

GRP Self Contained Pump Station to comply with H1 2.39 Building Regs


Advantages

  • GRP Chamber for robust, longest lasting and reliable solution
  • Installation and commissioning services by our engineers
  • Sediment-free collection chamber
  • Ready for immediate installation
  • Installation and operating manual
  • Depths upto 14mtrs
  • Single or dual options
  • Pedestal or free standing options
  • 230v or 415v
  • Horizontal or vertical installations

Servicing

We strongly recommend that you take advantage of our Service Agreement Scheme, to give the pumping station prolonged trouble free operation.

The scheme provides for regular service visits through out the year and includes for labour and travel. Any additional parts and materials are charged at the quoted price, Any parts replaced during the first 12 months, as a result of normal wear and tear, are covered under our standard warranty replacement.

Equipment specifications, installation procedures, maintenance packages or servicing etc. documentation can be downloaded here, if your still unsure please contact one of our friendly, experienced team who are happy to help
