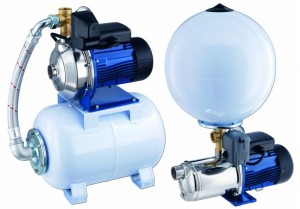

Lowara/Xylem Sphere Units, Block and Genyosystem

These units consist of a single-phase automatic one pump pressure set. It’s available in the electromechanical version, Sphere Units, Block (diaphragm tank, pressure switch, pressure gauge and various connectors) and in the electronic one (pump plus Genyo).

Removing air from sealed heating and chilled water systems can be a long arduous and costly process, installing an automatic de-aeration unit will ensure the system runs quietly and efficiently in all areas of the building.

The Lowara Servitec 30 is designed to operate with systems up to 8m³ but can be extended to cover 12m³ systems with a maximum system pressure of 3 bar.

A Lowara pressurisation unit should be used to make up the system water content and monitor for low/high pressures. On small systems where low/high pressure interlocks are not required the Servitec can control a basic fill unit in place of a full pressurisation unit.


Specifications:

  • Delivery: up to 6.60 m³/h
  • Head: up to 56 m
  • Power supply: single-phase 50 and 60 Hz
  • Power: from 0.30 kW up to 1.10 kW
  • Maximum operating pressure: 6 bar
  • Temperature of pumped liquid: to 40 °C

Xylem Block Units

Small built-in pressure boosters, fully automatic. These units consist of a single phase pump, diaphragm tank, pressure switch, pressure gauge and various connectors suitable for commercial water systems. The units are fully assembled and ready to be connected to the building’s water system.

Choice of units with self-priming (BGM) or horizontal single-impeller (CEAM) centrifugal pumps.


Specifications

  • Delivery: up to 100 l/min (6 m3/h)
  • Head: up to 50 metres (5 bar)
  • Power supply: single-phase
  • 50 and 60 Hz
  • Motor starting: D.O.L.
  • Power: up to 1.1 kW.
  • Water temperature: 0°C to +40°C
  • Pump type: horizontal
  • Control: pressure switch
  • Tank: 24l horizontal cylindrical

Materials

  • Pump: Stainless steel
  • Tank: Enamelled Steel; butyl membrane

Applications

  • Pressure boosting in water systems for domestic use, lawn sprinkling and washing
  • Pumping of non-aggressive liquids in industrial plants

Xylem Sphere Units

Small built-in pressure boosters, fully automatic. These units consist of a single phase pump, diaphragm tank, pressure switch, pressure gauge and various connectors suitable for commercial water systems. The units are fully assembled and ready to be connected to the building’s water system.


Specifications

  • Delivery: up to 110 l/min (6.6 m3/h)
  • Head: up to 56 metres (5.6 bar)
  • Power supply: single-phase 50 and 60 Hz
  • Motor starting: D.O.L.
  • Power: up to 1.1 kW
  • Water temperature: 0°C to +40°C

Materials

  • Pump: Stainless steel
  • Tank: Enamelled steel (stainless steel available on request); butyl membrane

Applications

  • Pressure boosting in water systems for domestic use, lawn sprinkling and washing
  • Pumping of non-aggressive liquids in industrial plants

Featured Booster Set Learn more

Xylem Cat 5 Booster Sets

Quick Specs:

Lowara cat-5 packaged break tank booster sets are designed to be both compact and cost effective.

  • Single or twin pump (Single pump only on 55lt and 91lt tank sets)
  • Variable or fi xed speed
  • e-SV vertical multistage pumps
  • e-HM horizontal pumps
  • Tank nominal volumes available: 55lt, 91lt, 250lt, 450lt, 680lt and 1000lt
