Wilo-EMUport FTS FG

Wilo-EMUport FTS FG: Application

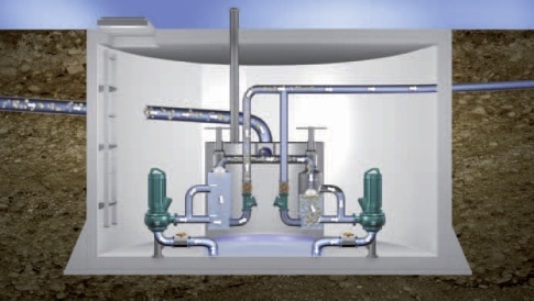

• System for installation in an existing structure (building or concrete sump).
• Sewage lifting unit with solids separation system for drainage of large residential estates and boroughs or as a replacement system for the refurbishment of existing large concrete sumps.

Product Information Found Here

Special features/product advantages

• Energy saving due to pumps with narrow ball passage, which produces better efficiency than with conventional sewage pumping stations
• Considerably less susceptible to plugging as the pumps do not come into contact with the solids in the wastewater
• Uninterrupted operation during maintenance or repair work due to the station's double-pump design and individual shut-off of the solids separation reservoirs
• All parts are accessible from outside, so very easy to maintain and hygienic
• Resistanc

Wilo-EMUport FTS MS

Wilo-EMUport FTS MS: Application

• Complete system fully assembled in PE-HD sump
• Compact sewage pumping station with solids separation system for the drainage of small residential estates and commercial buildings and complexes (e.g. hotels, department stores, etc.)

Product Information Found Here

Special features/product advantages

• Energy saving due to pumps with narrow ball passage, which produces better efficiency than with conventional sewage pumping stations
• Considerably less susceptible to plugging as the pumps do not come into contact with the solids in the wastewater
• Uninterrupted operation during maintenance or repair work due to the station's double-pump design and individual shut-off of the solids separation reservoirs
• All parts are accessible from outside, so very easy to maintain and hygienic
• Resistance to corrosion and long life due to construction from PE-HD material
• Can be used in drinking water protection areas (protected water catchment zones), being uniformly fuse-welded and absolutely watertight
• Defined interface, being a fully-assembled pumping station
• Quick and cost-effective installation and commissioning on site, being delivered fully assembled in the sump
• Acceptance inspection and testing can be done at the factory

Wilo-EMUport FTS MG

Wilo-EMUport FTS MG: Application

• System for installation in an existing structure (building or concrete sump).
• Sewage lifting unit with compact solids separation system for drainage of commercial buildings and complexes (e.g. hotels, department stores, etc.), small residential estates or as a replacement system for the refurbishment of existing large concrete sumps.

Product Information Found Here

Special features/product advantages

• Energy saving due to pumps with narrow ball passage, which produces better efficiency than with conventional sewage pumping stations
• Considerably less susceptible to plugging as the pumps do not come into contact with the solids in the wastewater
• Uninterrupted operation during maintenance or repair work due to the station's double-pump design and individual shut-off of the solids separation reservoirs
• All parts are accessible from outside, so very easy to maintain and hygienic
• Resistance to corrosion and long life due to construction from PE-HD material

Wilo EMUPORT - sewage solids separation system

Requirement

The amount of solids in domestic sewage is continuously increasing due to current water savings. This means that the pumps in pumping stations need even larger free ball passages, which also means an increase in pump power consumption.

Function

With the solids separation system, the inflowing sewage flows into the distribution tank and from there into the open solids separation tank. The solids are kept back here. Only prepurified sewage is now able to pass through the pump into the large, combined collection reservoir. While the collection reservoir is filled, the water level in the solids separation tank rises. The shut-off ball automatically closes the inlet. Now, pumping starts when the correct level has been reached. The pump pumps in the reverse direction. The sewage flows through the solids separation reservoir and thus conveys the "filtered-out" solids into the outgoing pressure pipe. Then, the entire solids separation system is flushed and cleaned. Pumping is stopped again, when the correct level has been reached. The shut-off ball drops, leaving the path free for a new filling sequence. During this pumping sequence, the sewage is pumped into the other solids separation reservoir.

Advantages of the solids separation system

• Uses pumps with free ball passage < 80 mm, thus reducing fuel requirements and operating costs while increasing efficiency
• Hygienic conditions for maintenance and assembly work
• Pump room is clean, dry, and odourless
• Less wear, since the solids are not pumped by the hydraulic unit
• Submersible sewage pump with adjusted impeller and protection class IP 68 (submersible)
• No corrosion problems, no effect from the formation of hydrogen sulphide

1 = inlet pipe, 2 = manifold, 3 = solids collection reservoir, 4 = solids separation flap, 5 = collection reservoir with filtered sewage, 6 = shut-off ball, 7 = discharge pipeline, 8 = ventilation and exhaust
